Distribution Transformer

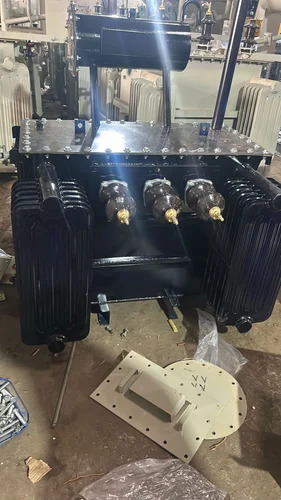

• Capacity
• 400 KVA

• Coil Material
• Other , Copper

• Coil Number
• Other, 2 (Primary & Secondary)

• Coil Structure
• Other, Core type

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• 1750 x 950 x 1400 mm

• Efficiency
• Level 2

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• 3400 W

• Low Voltage
• 433 V

• Material
• Copper

• Operating Temperature
• Up to 45C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 400 KVA

• Product Type
• Other, Oil Cooled Transformer

• Rated Voltage
• 11 kV / 433 V

• Standard
• IS 1180/IEC 60076

• Usage
• Distribution transformer

• Voltage Booster Type
• Other, Off-Circuit Tap Changer (OCTC)

• Weight
• Approx. 1800 kg

• Capacity
• 25 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Other, Two (primary & secondary)

• Coil Structure
• Other, Core type

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• Approx. 700 x 550 x 800 mm

• Efficiency
• Level 2

• Frequency (MHz)
• 50

• High Voltage
• 11 kV

• Load Loss
• As per IS 1180 standards

• Low Voltage
• 433 V

• Material
• Aluminium

• Operating Temperature
• -10C to 50C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 6-25 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV / 433 V

• Standard
• IS 1180, IS 2026

• Usage
• Distribution of electrical power

• Voltage Booster Type
• Other, Off-Circuit Tap Changer (OCTC)

• Weight
• Approx. 200-350 kg

• Capacity
• 200 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Other, Two

• Coil Structure
• Other, Combined

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• 1150 x 950 x 1450 mm

• Efficiency
• Level 2

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• Max 2150 W

• Low Voltage
• 433 V

• Material
• Mild Steel Tank

• Operating Temperature
• -25C to 45C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 200 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV/433 V

• Standard
• IS 1180

• Usage
• Distribution

• Voltage Booster Type
• Other, ONAN

• Weight
• Approx 900 kg

• Capacity
• 635 KVA

• Coil Material
• Other , Electrolytic Copper or Aluminium

• Coil Number
• Other, Double Wound

• Coil Structure
• Other, Layer or Disk Type

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• Approx. 2200 x 1500 x 1800 mm

• Efficiency
• Up to 98%

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11000 V

• Load Loss
• As per IS 1180/IEC standards

• Low Voltage
• 433 V

• Material
• Copper/Aluminium Wound, CRGO Steel Core

• Operating Temperature
• -25 to +50 C

• Output
• 635 KVA

• Phase
• Three Phase

• Power Scope
• 635 KVA

• Product Type
• Other, Oil-Immersed Distribution Transformer

• Rated Voltage
• 11 kV / 0.433 kV

• Standard
• IS 1180 / IS 2026 / IEC 60076

• Usage
• Industrial/Utility Power Distribution

• Voltage Booster Type
• Other, No

• Weight
• Approx. 3500-4500 Kg

• Capacity
• 630 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Other, 2

• Coil Structure
• Toroidal

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• 1700 x 900 x 1500 mm

• Efficiency
• Level 2

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• < 4000 W

• Low Voltage
• 433 V

• Material
• Aluminium

• Operating Temperature
• -25 to 45C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 630 kVA

• Product Type
• Other, Oil Immersed Transformer

• Rated Voltage
• 11 kV/433 V

• Standard
• IS 1180 / IEC 60076

• Usage
• Distribution Transformer

• Voltage Booster Type
• Other, Off-Circuit Tap Changer

• Weight
• Approx. 1600 kg

• Capacity
• 1000 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Other, Two

• Coil Structure
• Other, Double Wound

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• Estimated 2.5m x 1.5m x 2.2m

• Efficiency
• Level 2

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• 5000 W

• Low Voltage
• 433 V

• Material
• Aluminium

• Operating Temperature
• -25C to +45C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 1000 kVA (1 MVA)

• Product Type
• Other, Oil Cooled Transformer

• Rated Voltage
• 11kV/433V

• Standard
• IS 1180/IEC 60076

• Usage
• Power distribution

• Voltage Booster Type
• Other, Off-Circuit Tap Changer (OCTC)

• Weight
• Approx. 4500 kg

• Capacity
• 500 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Other, Two

• Coil Structure
• Other, Core type

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• 2100 x 1100 x 1700 mm

• Efficiency
• Level 2

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• As per IS 1180

• Low Voltage
• 433 V

• Material
• Mild Steel Tank

• Operating Temperature
• -25C to +50C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 500 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV/433 V

• Standard
• IS 1180, IS 2026

• Usage
• Distribution

• Voltage Booster Type
• Other, OCTC Tap Changer

• Weight
• Approx. 1800 kg

• Capacity
• 315 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Other, 2 (Primary and Secondary)

• Coil Structure
• Other, Core type

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• Approx. 1900 x 900 x 1550 mm

• Efficiency
• Level 2

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• Approx. 2.7 kW

• Low Voltage
• 433 V

• Material
• Aluminium

• Operating Temperature
• -10C to +50C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 315 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV / 433 V

• Standard
• IS 1180 / IEC 60076

• Usage
• Distribution

• Voltage Booster Type
• Other, Off-Circuit Tap Changer (OCTC)

• Weight
• Approx. 1200 kg

• Capacity
• 100 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Other, 2 (Primary and Secondary)

• Coil Structure
• Other, Core Type

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• 1500 x 800 x 1450 mm (approx.)

• Efficiency
• Level 2

• Frequency (MHz)
• 50

• High Voltage
• 11 kV

• Load Loss
• As per IS 1180

• Low Voltage
• 433 V

• Material
• Aluminium

• Operating Temperature
• -5 to 45C

• Output
• Low Voltage Output

• Phase
• Other, 3 Phase

• Power Scope
• 100 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV / 433 V

• Standard
• IS 1180/IEC 60076

• Usage
• Distribution

• Voltage Booster Type
• Other, OCTC

• Weight
• Approx. 650 kg

• Capacity
• 63 kVA

• Coil Material
• Other , Copper

• Coil Number
• Double Winding

• Coil Structure
• Other, Core-type

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• 1100 x 800 x 1300 mm

• Efficiency
• Level 2

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• Approx. 1050 W

• Low Voltage
• 433 V

• Material
• Copper

• Operating Temperature
• -10C to 50C

• Output
• 433 V

• Phase
• Other, 3 Phase

• Power Scope
• 63 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV / 433 V

• Standard
• IS 1180/IEC

• Usage
• Power Distribution

• Voltage Booster Type
• Other, Off-Circuit Tap Changer (OCTC)

• Weight
• Approx. 600 kg

• Capacity
• 800 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Double Winding

• Coil Structure
• Laminated Core

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• 2200 x 1100 x 1650 mm

• Efficiency
• Level 1

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• 7.2 kW (at full load)

• Low Voltage
• 433 V

• Material
• Mild Steel Body

• Operating Temperature
• -10C to 50C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 800 kVA

• Product Type
• Other, Oil Cooled Transformer

• Rated Voltage
• 11 kV / 433 V

• Standard
• IS 2026 / IEC 60076

• Usage
• Distribution Transformer

• Voltage Booster Type
• Other, Off-Circuit Tap Changer

• Weight
• Approx. 3200 kg

• Capacity
• 160 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Other, Two windings

• Coil Structure
• Other, Core type

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• Approx. 1150*900*1600 mm

• Efficiency
• Level 2

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• 1460 W (at full load)

• Low Voltage
• 433 V

• Material
• Aluminium

• Operating Temperature
• -25C to +50C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 160 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV / 433 V

• Standard
• IS 1180 / IEC 60076

• Usage
• Distribution of electricity

• Voltage Booster Type
• Other, Off-Circuit Tap Changer

• Weight
• Approx. 900 kg

• Capacity
• 25 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Other, Two

• Coil Structure
• Other, Core type

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• Approx. 700x600x1200 mm

• Efficiency
• Level 2

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• < 550 W

• Low Voltage
• 433 V

• Material
• Aluminium

• Operating Temperature
• -25C to +50C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 25 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV / 433 V

• Standard
• IS 1180 / IEC 60076

• Usage
• Power distribution

• Voltage Booster Type
• Other, Off-circuit tap changer

• Weight
• Approx. 200 kg

• Capacity
• 815 kVA

• Coil Material
• Other , Copper

• Coil Number
• Other, 2 (primary & secondary)

• Coil Structure
• Other, Layer wound

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• 2100 x 1200 x 1800 mm

• Efficiency
• Level 1

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• Approx. 6.8 kW

• Low Voltage
• 433 V

• Material
• Copper

• Operating Temperature
• -10C to 50C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 815 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV/433 V

• Standard
• IS 1180/IS 2026

• Usage
• Power distribution

• Voltage Booster Type
• Other, Off-Circuit Tap Changer (OCTC)

• Weight
• Approx. 3000-3500 kg

• Capacity
• 415 KVA

• Coil Material
• Other , Copper or Aluminum

• Coil Number
• Other, Dual Winding

• Coil Structure
• Other, Layer Wound

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• 2650 x 1300 x 1750 mm (Approx.)

• Efficiency
• 98% (Typical)

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• < 4000 W

• Low Voltage
• 433 V

• Material
• High Grade CRGO Steel and Copper/Aluminum windings

• Operating Temperature
• -20C to +50C

• Output
• 415 KVA

• Phase
• Three Phase

• Power Scope
• 415 KVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV/433 V

• Standard
• IS 1180 / IEC 60076

• Usage
• Electrical Power Distribution

• Voltage Booster Type
• Other, Tap Changer (Off Circuit or On Load as per requirement)

• Weight
• Approx. 2500 kg

• Capacity
• 500 kVA

• Coil Material
• Other , Electrolytic Copper or Aluminum

• Coil Number
• Double Winding

• Coil Structure
• Laminated Core

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• 2000 mm x 900 mm x 1750 mm (approx.)

• Efficiency
• 98%-99%

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV or 22 kV

• Load Loss
• Approx. 5200 W

• Low Voltage
• 0.433 kV

• Material
• Copper/Aluminum and Silicon Steel

• Operating Temperature
• -25C to +50C

• Output
• 500 kVA

• Phase
• Three Phase

• Power Scope
• 500kVA

• Product Type
• Other, Oil-cooled Distribution Transformer

• Rated Voltage
• HV 11/22 kV, LV 0.433 kV

• Standard
• IS 1180 / IEC 60076

• Usage
• Electrical power distribution

• Voltage Booster Type
• Other, Tap Changer

• Weight
• Approx. 2200-2500 kg

• Capacity
• 40 kVA

• Coil Material
• Other , Aluminium

• Coil Number
• Other, 2

• Coil Structure
• Other, Double Wound

• Cooling Type
• Oil Cooled

• Dimension (L*W*H)
• Approx. 900x600x1100 mm

• Efficiency
• Level 2

• Frequency (MHz)
• 50

• High Voltage
• 11 kV

• Load Loss
• As per IS 1180

• Low Voltage
• 433 V

• Material
• Aluminium

• Operating Temperature
• -20 to +50C

• Output
• 433 V

• Phase
• Three Phase

• Power Scope
• 40 kVA

• Product Type
• Other, Distribution Transformer

• Rated Voltage
• 11 kV/433 V

• Standard
• IS 1180/Dyn11

• Usage
• Distribution

• Voltage Booster Type
• Other, Off-Circuit Tap Changer

• Weight
• Approx. 350 kg

• Capacity
• Up to 100 MVA

• Coil Material
• Other , Copper/Aluminum

• Coil Number
• Other, Two or more (primary and secondary)

• Coil Structure
• Other, Laminated core with windings

• Cooling Type
• ONAN/ONAF (Oil Natural Air Natural/Oil Natural Air Forced)

• Dimension (L*W*H)
• Custom based on rating (e.g., 2500x1800x2200 mm typical for mid-size)

• Efficiency
• Up to 99%

• Frequency (MHz)
• 50/60 Hz

• High Voltage
• Up to 220,000 V or specification based

• Load Loss
• Low, design specific (e.g., 1500 W to 8000 W depending on capacity)

• Low Voltage
• Up to 11,000 V or as required

• Material
• High-grade silicon steel, copper/aluminum windings

• Operating Temperature
• -25C to +50C

• Output
• As per application needs (HV/LV)

• Phase
• Three Phase

• Power Scope
• Up to 100 MVA or as specified

• Product Type
• Other, Power Transformer

• Rated Voltage
• 11 kV, 33 kV, 66 kV, 132 kV and above

• Standard
• IS 2026 / IEC 60076

• Usage
• Electrical power transmission and distribution

• Voltage Booster Type
• Other, Automatic/manual tap changer

• Weight
• Varies; typically several tons

• Capacity
• 100 kVA to 2500 kVA

• Coil Material
• Other , Copper/Aluminium

• Coil Number
• Other, 2 (Primary & Secondary)

• Coil Structure
• Other, Layer Wound/Disc Wound

• Cooling Type
• ONAN (Oil Natural Air Natural)

• Dimension (L*W*H)
• Variable, e.g., Approx. 1400 mm x 900 mm x 1600 mm

• Efficiency
• 98%

• Frequency (MHz)
• 50 Hz

• High Voltage
• 11 kV

• Load Loss
• As per IS 1180/IEC standards

• Low Voltage
• 0.433 kV

• Material
• Copper Core, CRGO lamination, MS Tank

• Operating Temperature
• -20C to +50C

• Output
• Stepped down voltage output

• Phase
• Three Phase

• Power Scope
• Up to 2500 kVA

• Product Type
• Other, Oil Cooled Distribution Transformer

• Rated Voltage
• 11 kV / 0.433 kV

• Standard
• IS 1180, IEC 60076

• Usage
• Electrical power distribution

• Voltage Booster Type
• Other, Step Down

• Weight
• Depending on rating, approx. 1200-4000 kg
